NASA Instruments: buzzer voltage?

Poignard

Well-known member
Joined
23 Jul 2005
Messages
51,992
Location
South London
Visit site
Can anyone tell me please, what is the operating voltage of the buzzer (bleeper) that comes with NASA instruments, eg Clipper Depth Sounder.

The NASA part number is SM523-BUZZER


Refueler

Well-known member
Joined
13 Sep 2008
Messages
18,843
Location
Far away from hooray henrys
Visit site
Last edited:

Poignard

Well-known member
Joined
23 Jul 2005
Messages
51,992
Location
South London
Visit site

VicS

Well-known member
Joined
13 Jul 2002
Messages
48,361
Visit site
Can anyone tell me please, what is the operating voltage of the buzzer (bleeper) that comes with NASA instruments, eg Clipper Depth Sounder.

The NASA part number is SM523-BUZZER
If you have an old one it may be marked on the back


Alex_Blackwood

Well-known member
Joined
19 May 2003
Messages
1,685
Location
Fareham
Visit site
In take it you have the manual ? I know it does not give voltage of the buzzer - but shows it wired to the green and black wires in mine.

I have to say that mine hardly ever sounds when it should !!

I have a feeling its an Active 12V ....

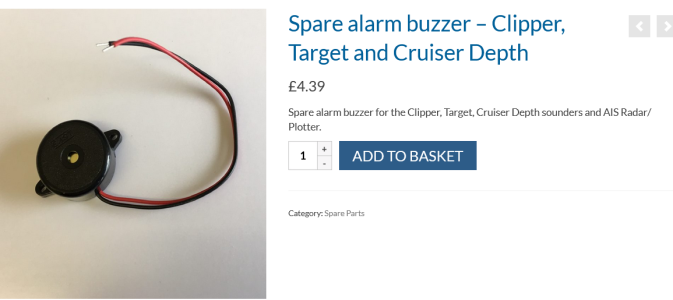

If you need a new one ...... Spare alarm buzzer - Clipper, Target and Cruiser Depth - Nasa Marine Instruments
Probably "Bog Standard 12 volt" Most buzzers of that type, Piezoelectric, have a large voltage range. Load of 3-24 volt, for example, available on line.


AngusMcDoon

Well-known member
Joined
20 Oct 2004
Messages
8,726
Location
Up some Hebridean loch
Visit site
Probably "Bog Standard 12 volt" Most buzzers of that type, Piezoelectric, have a large voltage range. Load of 3-24 volt, for example, available on line.
There are some where all you need is a DC voltage applied to make them buzz, & others that need a driving circuit that oscillates. Datasheet will need to be consulted. The last commercial device I worked on the electronic engineer had specified the wrong type - all you get is a click.


Refueler

Well-known member
Joined
13 Sep 2008
Messages
18,843
Location
Far away from hooray henrys
Visit site
There are some where all you need is a DC voltage applied to make them buzz, & others that need a driving circuit that oscillates. Datasheet will need to be consulted. The last commercial device I worked on the electronic engineer had specified the wrong type - all you get is a click.

Active vs Passive.

Most applications like this use the ACTIVE type ... built in driver.
