Electrical system design small yacht

[Spindrift68]

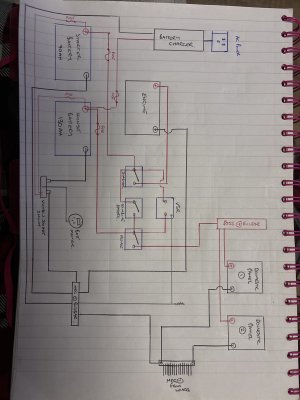

Hello all, new to this forum so be gentle with me. Just after some advice if possible, I am in the process of upgrading a old and tired electrical system and have made a start on it, please see attached where I’ve got to so far, please could anyone check it over and point me in the right direction of any mistakes/issues. Thankyou



[wonkywinch]

What is the difference between your engine battery and starter battery?

Any provision for windlass, solar, inverter?



[Spindrift68]

What is the difference between your engine battery and starter battery?

Any provision for windlass, solar, inverter?

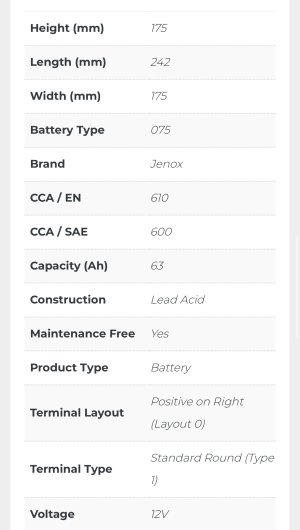

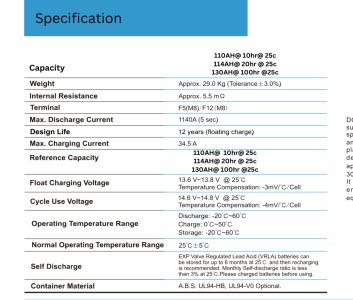

Only difference is that engine battery is high cranking and lower ah and the house is slightly higher ah agm. Not planning for windlass or inverter right now, may add a little solar at some point



[Spindrift68]

What is the difference between your engine battery and starter battery?

Any provision for windlass, solar, inverter?

Sorry I just realised what you were saying, the one that’s marked engine is the actual engine not a battery sorry for confusion



[MontyMariner]

the one that’s marked engine is the actual engine

More precisely, the way you have drawn it, the engine starter motor (solenoid), for completeness you should also show the engine alternator and it's path to the batteries.
Lots of good diagrams on the forum see ybw 12v wiring diagram - Google Suche



[KompetentKrew]

I hope you don't mind me rehosting your pic at Imgur, @Spindrift68. I also cropped it a bit and adjusted the colour. I think it's easier to read this way.



[PaulRainbow]

Hello all, new to this forum so be gentle with me. Just after some advice if possible, I am in the process of upgrading a old and tired electrical system and have made a start on it, please see attached where I’ve got to so far, please could anyone check it over and point me in the right direction of any mistakes/issues. Thankyou

Looks mostly correct, except :

1) Connect the combine switch to the load side of the isolator switches, that way you can isolate a dead/faulty battery and use the combine switch to get you home on the good battery.

2) Domestic wiring/fusing. You need to use start sized cable from the battery to the isolator and to the combine switch, or you can't start the engine. This needs to be fused the same as the engine battery fuse, to protect the wiring, but still enable enough current to start the engine. This fuse will be rated far too high for the VSR and domestic panels. The fuse for the VSR needs to be rated for the max current of the VSR, as does the cables going to it. You'll need to add fuses for the domestic panels, these need to be rated for the cable, which needs to be rated for the combined loads of the panel, don't skimp here or you'll get voltage drop issues.



[wonkywinch]

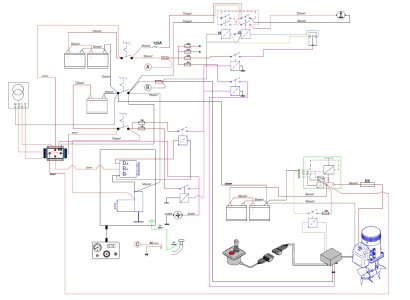

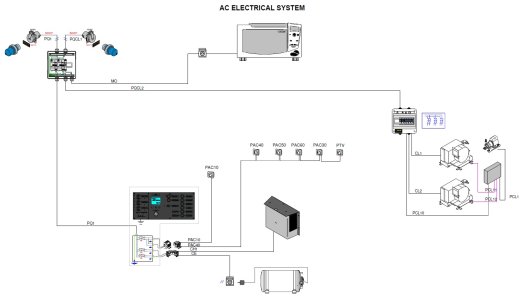

If it helps, here are the DC and AC layouts for my AWB (Beneteau Oceanis).



[Spindrift68]

Looks mostly correct, except :

1) Connect the combine switch to the load side of the isolator switches, that way you can isolate a dead/faulty battery and use the combine switch to get you home on the good battery.

2) Domestic wiring/fusing. You need to use start sized cable from the battery to the isolator and to the combine switch, or you can't start the engine. This needs to be fused the same as the engine battery fuse, to protect the wiring, but still enable enough current to start the engine. This fuse will be rated far too high for the VSR and domestic panels. The fuse for the VSR needs to be rated for the max current of the VSR, as does the cables going to it. You'll need to add fuses for the domestic panels, these need to be rated for the cable, which needs to be rated for the combined loads of the panel, don't skimp here or you'll get voltage drop issues.

Paul,
1) understood I think, is that load side on both switches, basically the two cables move to the other sides?
2) when you say start size cable, will 35mm 240amp be sufficient? Or larger?
I have put in fuses after the battery connections, do I need to put fuses in the cables between the isolators and the combiner on both sides?
VSR is 140amp, again do I need a fuse either side of the VSR?
Yes both panels will be fused and will add that on
Thanks in advance



[PaulRainbow]

Paul,
1) understood I think, is that load side on both switches, basically the two cables move to the other sides?

Yes

2) when you say start size cable, will 35mm 240amp be sufficient? Or larger?

Depends on the engine, if you use 35mm from the engine battery to the engine, it'll be good to the domestic isolator.

I have put in fuses after the battery connections, do I need to put fuses in the cables between the isolators and the combiner on both sides?
VSR is 140amp, again do I need a fuse either side of the VSR?
Yes both panels will be fused and will add that on
Thanks in advance

From the domestic battery to the isolator, same size fuse as o the engine battery. From the isolator to the VSR you would need 25mm cable to carry the full 140A, fused accordingly. If you don't enable the start assist function (no need with the combine switch) you can downrate that to suit your alternator output, for instance, if you have a 60A alternator use 10mm cable and 60A fuses (this assumes no charging sources or loads exceeding 60A). You must fuse one side to protect the VSR from overload, if the other side can possibly short, you must fuse that too.



[Spindrift68]

Yes

Depends on the engine, if you use 35mm from the engine battery to the engine, it'll be good to the domestic isolator.

From the domestic battery to the isolator, same size fuse as o the engine battery. From the isolator to the VSR you would need 25mm cable to carry the full 140A, fused accordingly. If you don't enable the start assist function (no need with the combine switch) you can downrate that to suit your alternator output, for instance, if you have a 60A alternator use 10mm cable and 60A fuses (this assumes no charging sources or loads exceeding 60A). You must fuse one side to protect the VSR from overload, if the other side can possibly short, you must fuse that too.

Thank you massive help
