Whitlock King Cobra mk6

[MickToo]

Yet again I've got knocking / clonking being experienced through the helm, which is almost certainly emanating from the "maintenance-free*" bottom bearing of the vertical shaft in the Whitlock Cobra steering pedestal.

I know that the steering arm is welded to the bottom of the vertical shaft and that has to be removed - however, given that the bevel gear quadrant at the top end is secured with stake-pins, my question is: 'is there any good reason not to drill and through bolt the steering arm to the shaft rather than renew the weld?'

Bolting all the way through will have the effect of clamping the bracket to the shaft and will have the added benefit of improved ease of removal / replacement when the offending bearing next fails, as surely it will.

* By "maintenance-free" I mean it's a sealed ball-race bearing and there's no facility to undertake any maintenance of it without major disassembly of the pedestal, currently requiring grinding off the welds on the steering arm and re-welding same on reassembly.



[Supertramp]

Not clear of your exact details but if the bottom bearing of your pedestal is a 90 degree bevel box with play, you may be able to adjust the.bearing clearance with the shims built into the casing without removing the shaft.



[MickToo]

The bottom bearing is not adjustable - here's some images copied from someone else's blog to help illustrate the issue - it's not the same Whitlock model but it's the same design concept.

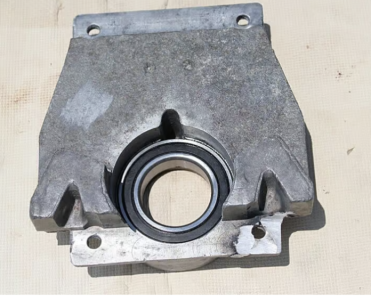

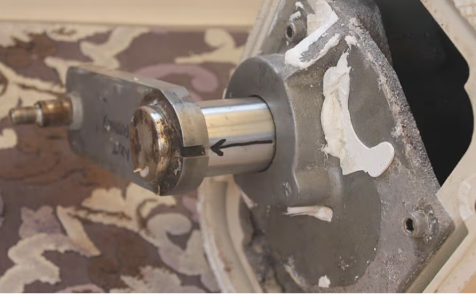

The first image shows the underside of the bearing housing (pedestal fully assembled, laying on its side), the second shows the ball-race in its housing as viewed from above



[Supertramp]

Understood. Clearly needs the clamping bracket unwelded and removed. Removable bolts makes sense but would that stop any play between shaft and quadrant. Not sure how other Lewmar systems do this but I would have expected a clamping system - but that probably means replacing the quadrant.



[Fr J Hackett]

Why not simply drive out the roll pins then the shaft can be withdrawn. Probably not in situ as there is unlikely to be clearance between the cockpit floor and the hull so you will have to remove the pedestal.



[MickToo]

Ah, if only Whitlock had made disassembly so easy - the vertical shaft has a greater diameter immediately above the bottom bearing, indeed the shaft bears down upon the bottom bearing and thus replacing the bottom bearing requires removal of the bearing carrier plate which in turn is dependent upon removal of the steering arm (which is welded to the bottom of the vertical shaft)



[Martin H]

For what it's worth: I have just renewed the bearings on my Cobra. The decision I took was that the welded steering arm was too slim to safely through- bolt. Looking at drawings of the older models, the bolt on steering arm was a considerably beefier item. The fact that a friend is an expert welder may have helped the decision!



[MickToo]

Thanks Martin, not as hoped but useful nevertheless.

Mine is circa 2002 - I've not yet measured the thickness of the arm but based on your comments, drilling & bolting is likely not going to be an option.

Thus it appears I may be stuck with having it ground off and welded back
