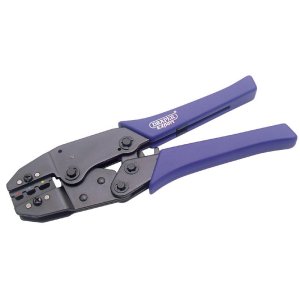

Using my Draper Expert ratchet crimper

[cpedw]

Which side should the wire side of crimp terminals be located when using this tool? The jaw with the coloured dots on is not symmetrical so I'm presuming there's a right side and a wrong side to have the wire approaching the tool.

To (hopefully) avoid confusion, I'm aware that the opposing jaws are different. That's not a problem. There's a small difference between sides of the jaw with the dots and that's troubling me. This doesn't seem to have a manual in the Draper Tools database.



[Boater Sam]

I matters not as long as the correct colour crimp is in the correct space.



[penberth3]

I matters not as long as the correct colour crimp is in the correct space.

Wrong answer. If it didn't matter the jaws would be symmetrical. They aren't, so there's obviously a right and a wrong way.



[PCUK]

As said. It doesn't matter. The crimper works whichever the way the wire is inserted. The differing shapes just ensure the correct crimp form is achieved and either way is OK.



[penberth3]

As said. It doesn't matter. The crimper works whichever the way the wire is inserted. The differing shapes just ensure the correct crimp form is achieved and either way is OK.

I don't agree. I repeat, why aren't the jaws symmetrical?



[ithet]

I have one of these and find it doesn't make the crimps tight enough either way!



[TSB240]

Deleted



[wonkywinch]

The wire pokes into the crimp from the coloured dot side. Hold the connector on the other side and gently close the tool until the crimp is gripped but not crushed, poke wire in then operate the tool until it clicks for release.



[penberth3]

The wire pokes into the crimp from the coloured dot side. Hold the connector on the other side and gently close the tool until the crimp is gripped but not crushed, poke wire in then operate the tool until it clicks for release.

Looking at the shape of the jaws on my crimpers, that makes sense.



[wonkywinch]

Looking at the shape of the jaws on my crimpers, that makes sense.

If you crimp the wrong way round, the result is the crimped tube part is bent.



[Malish]

The wire pokes into the crimp from the coloured dot side. Hold the connector on the other side and gently close the tool until the crimp is gripped but not crushed, poke wire in then operate the tool until it clicks for release.

Isn't this description in contravention to the image shown in post #7 ?



[wonkywinch]

Isn't this description in contravention to the image shown in post #7 ?

It does, but that image looks like an artists impression rather than anything real.



[Malish]

happy to be advised, no axe to grind



[wonkywinch]

happy to be advised, no axe to grind

Crimps are cheap, stick one in each way and see what works.

This guy agrees with me ..



[alahol2]

Agree with Wonky winch, look at the dies. The side with the dot is minutely larger than the other side. This is because it will be crimping the wire insulation as well as the wire. The other side is only crimping the wire core. I use mine so infrequently that I have to check each time.



[Boathook]

I've got a similar crimper and never noticed any difference. Will have to look at it before next use !



[Rappey]

I've got a similar crimper and never noticed any difference. Will have to look at it before next use !

Same for me. Never had a problem whichever way around but will take more notice next time.



[colind3782]

I was taught that the wire goes in the side where the coloured dots are as Wonkywinch posted.



[PCUK]

I have one of these and find it doesn't make the crimps tight enough either way!

Unless it can be adjusted It's.



[ithet]

Unless it can be adjusted It's.

You cannot make the holes bigger! - well I suppose I could file the teeth down.
