Volvo penta 2003 lubrication system.

[noob_sloop]

Hello Team,

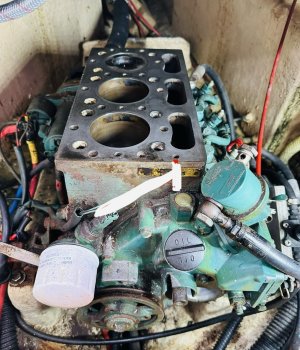

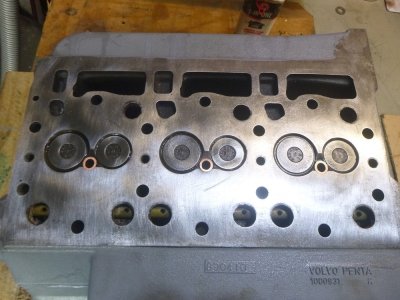

Today I’ve pulled out a head from my Penta 2003 (raw water cooled).

I’m wondering if someone has a diagram of the lubrication system for this engine.

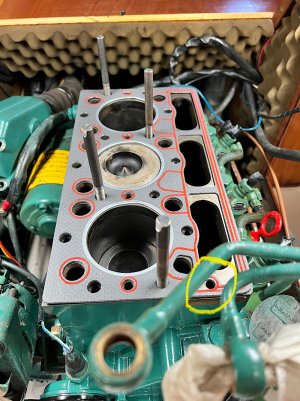

I don’t see the oil discharge from the block into the head.

Is it normal? How exactly oil goes from the oil filter into the head (to lubricate rockers)?

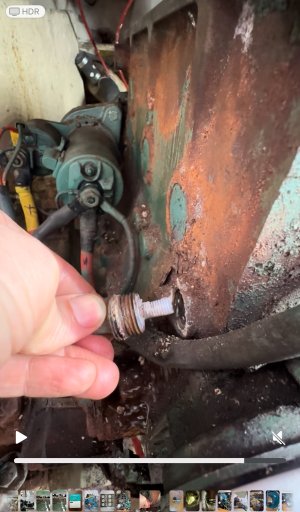

This is the link to the YouTube video that shows no discharge through that hole.

Thank you.



[chris-s]

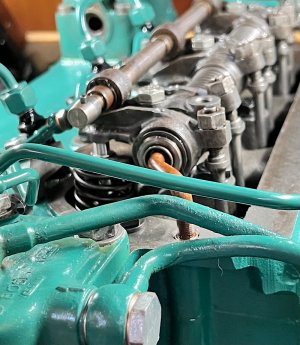

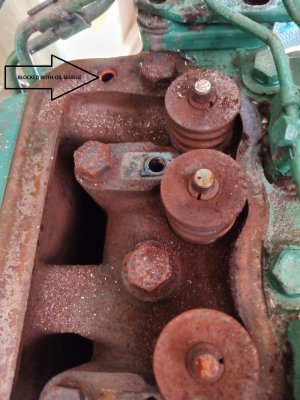

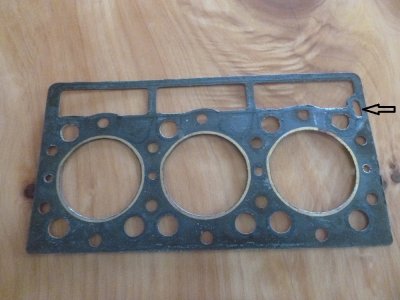

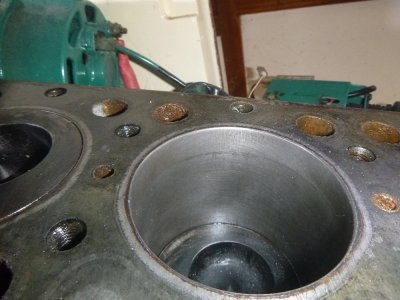

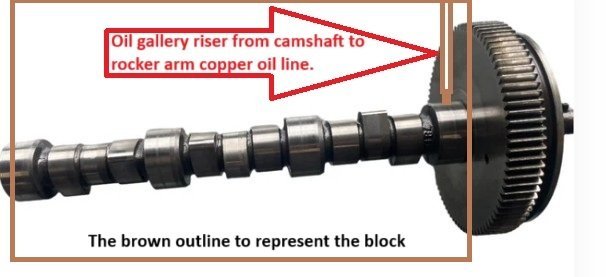

From what I saw when our head was off there is small hole/oil way at the front of the block into which a bent tube is fitted that also plugs into the rocker arm.



..or maybe I misread your question and what you are actually asking is why no oil is squirting out of the block?



[noob_sloop]

From what I saw when our head was off there is small hole/oil way at the front of the block into which a bent tube is fitted that also plugs into the rocker arm.
View attachment 179692


..or maybe I misread your question and what you are actually asking is why no oil is squirting out of the block?

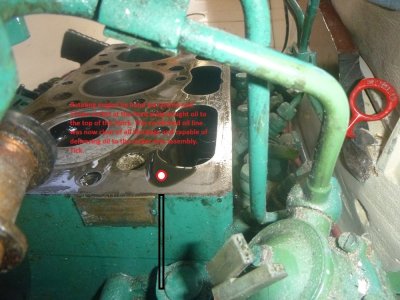

Yes, the question is why no oil comes from that hole.

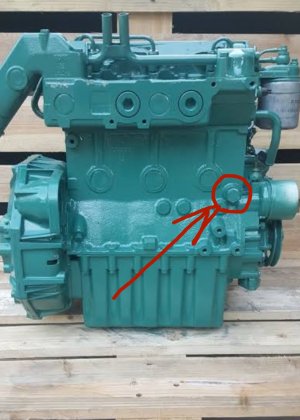

I assume the oil passage is clogged. Will be trying to clean it on Sunday. That is why I’m quite interested “how far does it go and how to clean it?”
