Machinist to copy Volvo part

[StefanSG]

Hi looking for someone who might copy a Volvo outdrive part which is obsolete ? Its the dog (or Shift Shoe in USA) from a Aquamatic 100B outdrive.

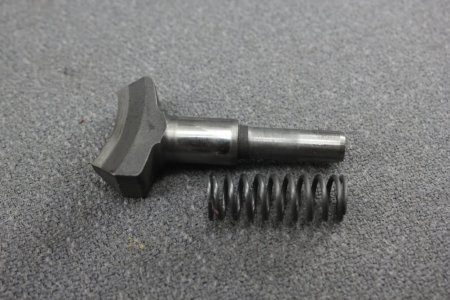

Similar to picture, around 50mm long.

SSG



[andsarkit]

You could try a PM to DinghyMan. His business ff-systems can do one off machining. I can recommend him.



[rogerthebodger]

You may be able to find some one who can 3D print it in metal



[DinghyMan]

Hi looking for someone who might copy a Volvo outdrive part which is obsolete ? Its the dog (or Shift Shoe in USA) from a Aquamatic 100B outdrive.
Similar to picture, around 50mm long.

SSG

View attachment 170119

Have you got an existing part to base one one, or the dimensions?



[StefanSG]

Have you got an existing part to base one one, or the dimensions?

I can borrow one.



[spannerman]

Make sure its up to spec i.e. hardness of the metal, if it breaks it will trash the upper section of the drive.



[burgundyben]

Hi looking for someone who might copy a Volvo outdrive part which is obsolete ? Its the dog (or Shift Shoe in USA) from a Aquamatic 100B outdrive.
Similar to picture, around 50mm long.

SSG

View attachment 170119

Talk to Graham at Wilkinson Precision Engineering in Hedge End.



[StefanSG]

I’ve now got a lead on a factory part so this is now my plan B but I will definitely keep these numbers, thanks all



[colhel]

That part looks like its machined, hardened and then ground. Quite a lot of work.



[Copious]

Hi StephanSG,

I've just had the dog replaced on a Volvo Penta sail drive 120SE this summer, which looks remarkably like what you're showing.

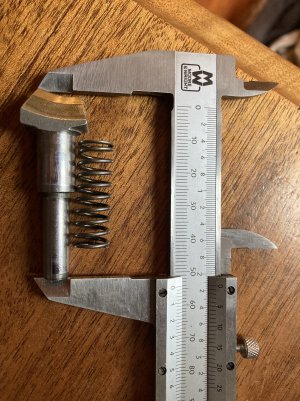

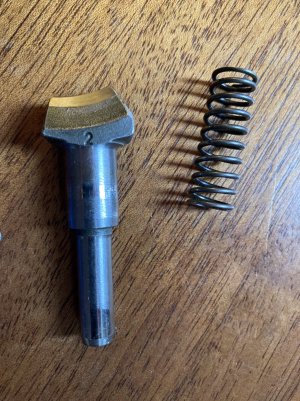

Photos here are what I have ( the one removed ). It was purchased from a VP dealer who fitted the new parts so I can assume that VP still stock it.
Any help?

You are more than welcome to have the parts buckshee BUT they were removed along with the sliding sleeve as the gearbox only worked in reverse! so I cannot give any warranty as to how worn it will be.

Copious



[BobnLesley]

I’ve now got a lead on a factory part so this is now my plan B but I will definitely keep these numbers, thanks all

From Volvo? Surely it would be cheaper to buy your own Engineering Company.



[StefanSG]

Hi StephanSG,

I've just had the dog replaced on a Volvo Penta sail drive 120SE this summer, which looks remarkably like what you're showing.
Photos here are what I have ( the one removed ). It was purchased from a VP dealer who fitted the new parts so I can assume that VP still stock it.
Any help?

You are more than welcome to have the parts buckshee BUT they were removed along with the sliding sleeve as the gearbox only worked in reverse! so I cannot give any warranty as to how worn it will be.

Copious

Thats very kind of you. I pulled that picture from google, as I couldnt find a picture of the one I need.

StefanSG



[Poignard]

That part looks like its machined, hardened and then ground. Quite a lot of work.

and made from a casting.
