Circuit Breaker Switch Panels

thazir

New member
Joined
31 Oct 2024
Messages
2
Visit site
We're really struggling to identify good value breaker switch panels... it seems they are either really costly like Blue Sea or really cheap like Force 4, wondering if you had any suggestion on brands / retailers that would be worth a look?


noelex

Well-known member
Joined
2 Jul 2005
Messages
4,885
Visit site
As Roger has indicated, the DIN rail circuit breakers are a good option. They are very easily replaceable (important if you are using CB’s as a DC switch) and available in any country from numerous manufacturers (so the manufacturer can go bust and an identical sized breaker is still available ). The DIN rail MCB are very well constructed, but not expensive, as they are sold in high volumes. They are true magnetic/thermal breakers (as are most of the Blue Seas breakers) rather than the less expensive thermal only units sometimes used in the cheap marine panels.

You can mount them without a custom engraved panel if you don’t mind a slightly "industrial" look.

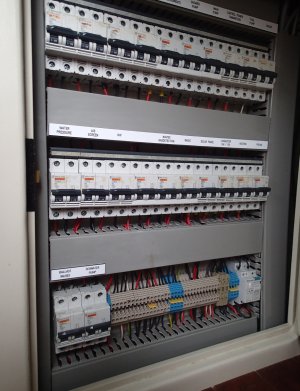

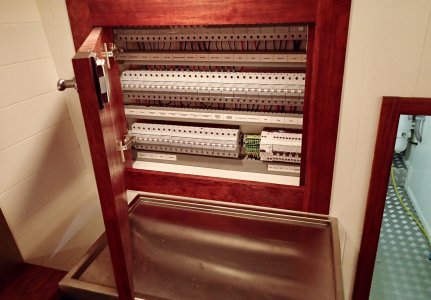

Below is my main circuit board:

Last edited:

Minerva

Well-known member
Joined
16 Oct 2019
Messages
1,373
Visit site
As roger has indicated the DIN rail circuit breakers are a good option. They are very easily replaceable (important if you are using CB’s as a DC switch) and available in any country from numerous manufacturers (so the manufacturer can go bust and an identical sized breaker is still available ). The DIN rail MCB are very well constructed, but not expensive as they sold in high volumes. They are true magnetic/thermal breakers (as are most of the Blue Seas breakers) rather than the less expensive thermal only units sometimes used in the cheap marine panels.

You can mount them without a custom engraved panel if you don’t mind a slightly "industrial" look.

Below is my main circuit board:
View attachment 184920
That is very neat indeed!


bedouin

Well-known member
Joined
16 May 2001
Messages
32,627
Visit site
What have you got against the cheap ones? A 12V circuit breaker is a commodity item that can be picked up for a few pence from someone like RS and the rest is just a cut out panel and a few letters.

I got my panel from Axon but I am not sure they are still in business


Tranona

Well-known member
Joined
10 Nov 2007
Messages
42,669
Visit site

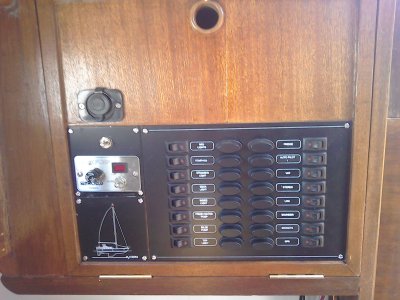

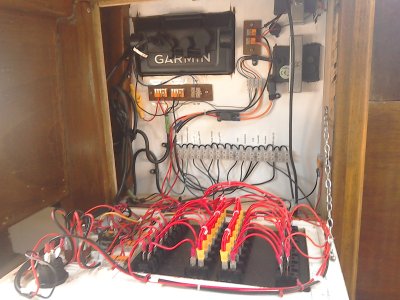

Yes, there is a gap which comes about because of the steady declining market for such things as there are effectively no volume builders in the UK to provide volume, no amateur boat builders and boats built in the last 30 years or so mostly have good switch panels unlike boats built in the 30 years prior to that. There are a couple of custom builders, but inevitably they end up as, or more expensive than Blue Sea. The exception until a couple of years ago was Axon, but they are no longer in business, presumably because of lack of volume. The photo shows the panel setup they put together for me. Just grateful I got it just before they closed down. It is not that difficult to make one , getting the panel machined and engraved by a signmaker and using standard components such as Carling circuit breakers.


Attachments

  • IMG_20220426_144042.jpg
    878.6 KB · Views: 23
  • IMG_20220426_144226.jpg
    860.1 KB · Views: 23

Stemar

Well-known member
Joined
12 Sep 2001
Messages
24,122
Location
Home - Southampton, Boat - Gosport
Visit site
An alternative if MCBs don't fit in your switch panel is to use a blade fuse circuit breaker


You can get blade fuse boxes with LEDs that tell you which fuse has blown, and they're a good idea when the saloon lights go out


Trident

Well-known member
Joined
21 Sep 2012
Messages
2,746
Location
Somewhere, nowhere
Visit site
ASAP Supplies have some good value panels that they get made - switches with the normal pop out circuit breaker

Not as nice to look at as BlueSea but not expensive and using high quality UK made circuit breakers , they certainly do the job


PaulRainbow

Well-known member
Joined
16 May 2016
Messages
17,409
Location
Suffolk
Visit site
I design my own and have them made by a sign company. I generally use ETA or Carling switches and breakers.

These are just breakers:

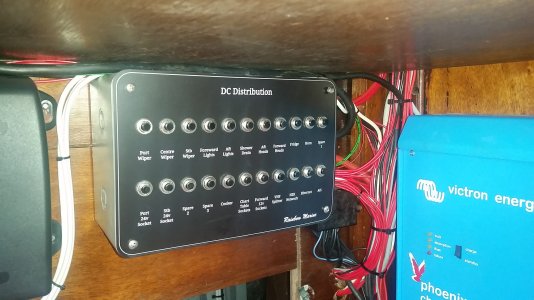

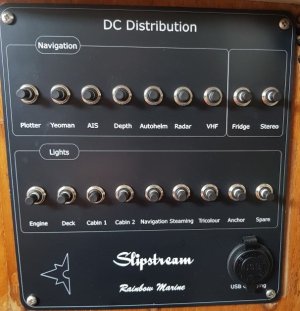

These are switches and breakers:

Westerly Fulmar Switch Panel 1.jpg

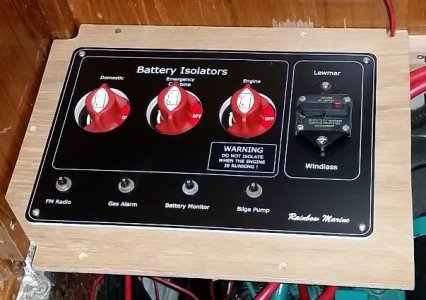

Battery isolators etc:

Maxi Isolators 1.jpg

Last edited:
