Volvo Penta 2003 ignition wiring

[Andydent2000]

I’m trying to piece back together my vp 2002 engine.

The problem is I didn’t take it apart and there are no notes. I am trying to work out which wire goes where from the relay and loom connection on the engine to the alternator and starter.

Any help would be much appreciated



[billyfish]

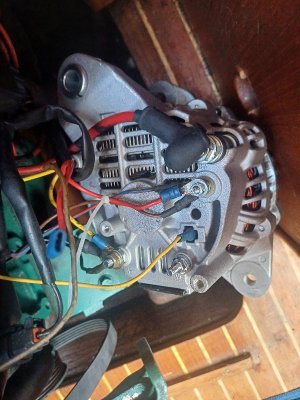

Might not help but I just put a new alternator on my VP D1-30



[madabouttheboat]

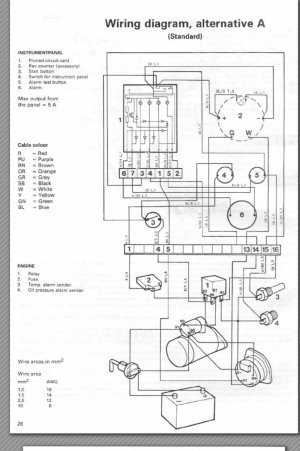

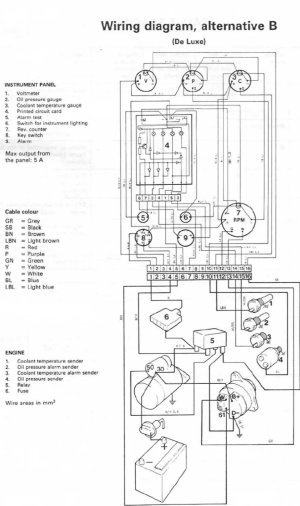

Not sure if you need 2002 or 2003, you mention both, but are these any good? Two versions of 2003 wiring



[nevis768]

I’m trying to piece back together my vp 2002 engine.

The problem is I didn’t take it apart and there are no notes. I am trying to work out which wire goes where from the relay and loom connection on the engine to the alternator and starter.

Any help would be much appreciated

You can get a worksop manual online free to down load, has wiring diagrams on it. I tried to download but the file was too big, I can send you a copy if u email me.
