Easy Ais System, manual required.

[mickywillis]

Looking for an installation/user manual for an Easy AIS receiver and splitter.
They are the older black units, connected via ethernet cables, not the ones with the white/blue/black stickers on the.
Model Numbers are A-013 Receiver and A-016 Splitter.
Looking to sell them, so a manual would be useful to have for prospective buyers.
They worked OK when removed from boat last year due to installing a Class B Transceiver, but I didnt take note of the wiring connections when removed!
Been on the website,but they dont have an archive for these units!



[chris-s]

Would that be one of these?



From some other photos I can see it is the ‘brown’ and ‘blue’ wires connected to the power, but can’t see which is -ve or +ve.

If I remember I will take when on the boat in the week.

Chris



[mickywillis]

Would that be one of these?

View attachment 166358

From some other photos I can see it is the ‘brown’ and ‘blue’ wires connected to the power, but can’t see which is -ve or +ve.

If I remember I will take when on the boat in the week.

Chris

Chris,

Yes thats the one, thats the splitter unit.
I'm sure I downloaded the manual some time ago from somewhere, but damned if I can find it!!
Thanks



[chris-s]

Chris,

Yes thats the one, thats the splitter unit.
I'm sure I downloaded the manual some time ago from somewhere, but damned if I can find it!!
Thanks

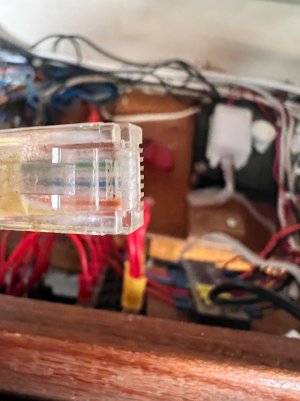

From the ‘network’ cable we have blue to ground and brown to 12v. No other wires are connected.

Hope that helps.



[mickywillis]

From the ‘network’ cable we have blue to ground and brown to 12v. No other wires are connected.

Hope that helps.

Thank you, I guess it depends what colour code the ethernet cable is wired as though? I may try emailing Easydock ( I think?) and see if they have any archives they can send.



[chris-s]

@mickywe

Thank you, I guess it depends what colour code the ethernet cable is wired as though? I may try emailing Easydock ( I think?) and see if they have any archives they can send.

Chris



[monkey_trousers]

I know this was a while ago.... but I was searching for the manual for the wiring as well and just found a copy if you need one still



[mickywillis]

I know this was a while ago.... but I was searching for the manual for the wiring as well and just found a copy if you need one still

Thank you, I did email Easydock some time ago and they sent copies of the original wiring diagrams to me. TBH, I have sold the units now and moved to a Class B AIS Transponder, linked to the CP300 Chartplotter.
